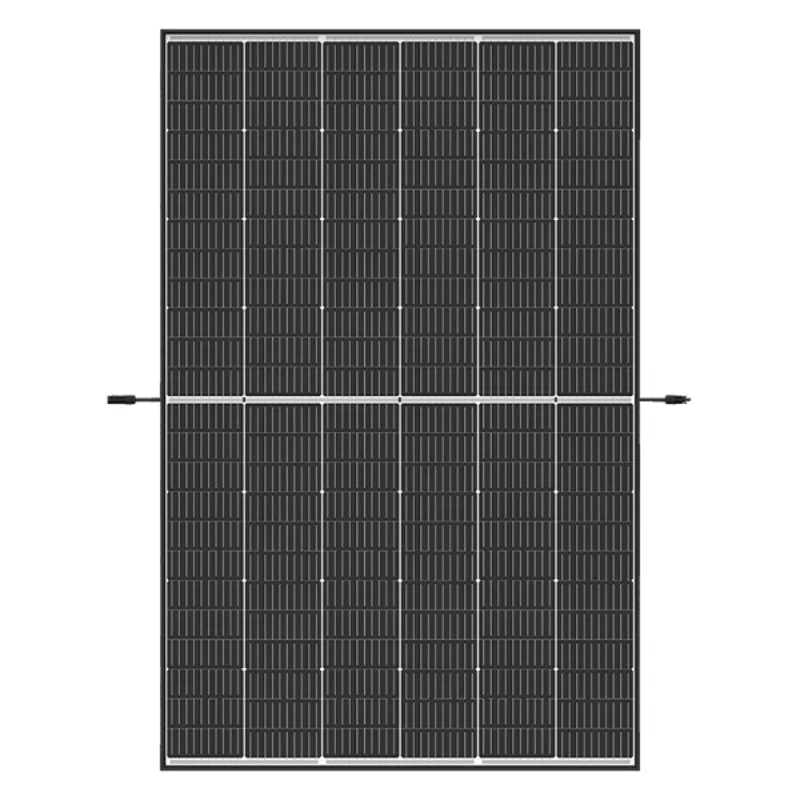

Trina Solar Vertex S+ TSM-NEG9R.28 450W

Trina Vertex S+ TSM-NEG9R.28 450W: Best Compact Residential Panel for SA 2026

450W N-type dual-glass half-cut panel with 22.5% efficiency. Ultra-low degradation. 25/30-year warranty.

Researched & reviewed by

Published • Updated • SolarPowerGuide

Seen installed in the field

What I’ve seen on installs

Installed on one of my projects. They seem to be doing the job, but it's too early to judge long-term, and I haven't followed up with the client since installation.

Maarten Kronberger, building contractor. Installed on projects where I checked the solar work.

Trina Vertex S+ TSM-NEG9R.28 450W: Best Compact Residential Panel for SA (2026 Review)

Trina Solar holds 15% of the South African market in 2026. The Vertex S+ 450W is the ultimate compact, high-efficiency panel for small roofs, townhouses, and space-constrained urban homes, featuring N-type i-TOPCon cells and dual-glass construction for extreme durability.

R2,600
Price/panel
22.5%
Efficiency
450 W
Power
Pending
SPG Rating

Full Technical Specifications

Power Output450 W
Efficiency22.5%
Cell Type108 half-cut N-type i-TOPCon
Dimensions1762 × 1134 × 30 mm
Weight21.0 kg
Temp Coefficient (Pmax)-0.30%/°C
FrameDual-glass, frameless
Wind Load2400 Pa
Junction BoxIP68, 3 bypass diodes

Annual Yield by Region (kWh/kWp)

  • Gauteng
    1,850–2,050
  • Western Cape
    1,950–2,150
  • Eastern Cape
    1,800–2,000

Installation Checklist

  • Perfect for small roofs, only 1.76m tall
  • Use 4 mm² DC cabling for 12–14 panel strings
  • Compatible with Enphase IQ8, SolarEdge, Deye, Growatt
  • Dual-glass = no PID, no micro-cracks, fire-resistant

Warranty Coverage

25 Years
Product
30 Years
Performance (87.4%)
0.40%
Annual Degradation

ROI Example (5.4 kW System)

Cost: R58,000 installed
SARS 125% Rebate: R31,900 savings
Effective Cost: R26,100
Payback: 4.2–5 years @ R2.50/kWh

Top Alternatives

PanelPowerEfficiencyPrice
JA Solar JAM54S30440W20.7%R2,500
Longi Hi-MO 6435W22.3%R2,700

FAQs

Why dual-glass?

No frame = no corrosion, no PID, 50% less micro-cracks, Class A fire rating.

Is it lighter than framed panels?

Yes, 21 kg vs 25+ kg. Easier to install on older roofs.

Does it work in hot climates?

Yes, -0.30%/°C temp coefficient + N-type = minimal summer loss.

My Verdict

Rating pending

They seem to be doing the job, but it's too early to judge long-term performance, so I'm holding back a score until I've followed up with the client.
